Wire rope drum calculation of hoisting device (Indoor EOC)

* Rated load : R =     ton

* Hook(attachment) weight : A =    ton

* Wire drum & wire rope weight : Dw =     ton

* No. of wire rope fall : N =     fall

* Wire rope reeving efficiency : Er =

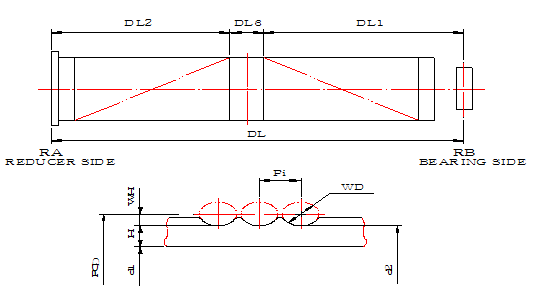

* Wire drum india. : d1 =     cm

* Wire drum outdia. : d2 =    cm

* Wire drum thickness(shell) : H =    cm

* Wire drum groove pitch : Pi =     cm

* Wire drum overall length : DL =    cm

* Wire drum groove length(bearing side) : DL1 =     cm

* Wire drum groove length(reducer side) : DL2 =     cm

* Wire drum no groove length(center) : DL3 =     cm

* Used material(KS,JIS,ASTM,DIN,BS) :

* Yield strength : 𝞂y =       ton/cm2



* Wire rope force due to rated load & hook(attachment) weight

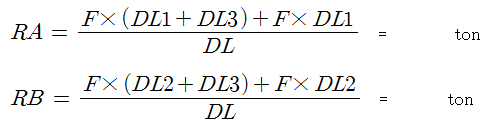

* Reaction force due to rated load & hook(attachment) weight



* Wire drum(shell) compressive stress



* Max. bending moment due to rated load & hook(attachment) weight



* Max. bending moment due to wire drum & wire rope weight



* Modulus of section



* Max. bending stress



* Equivalent stress



* Allowable bending stress



( Calculated value )



* Equivalent stress
